Description

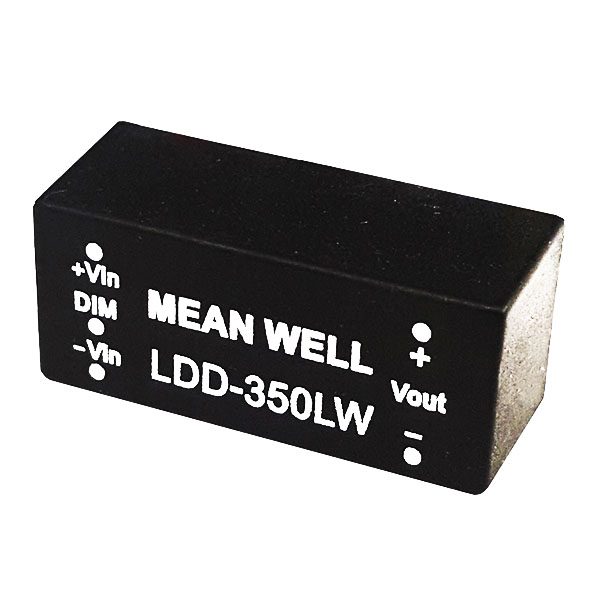

Constant Current Driver
- DC/DC step-down converter
- Constant current output: 350mA
- Wide input voltage: 9~36VDC
- Built-in PWM dimming and remote ON/OFF control
- Protections: short circuit / over temperature
- Fully encapsulated with IP67 level pin and wire style
- Compact size
- 3 years warranty
Additional information
| Type | Constant Current |
|---|---|
| Max power output | 8W |
| Dimmable | Yes via PWM |
| Size | 22mm x 10mm x 9mm |
| Power factor | n/a |
| Input voltage | 9-36VDC |
| Current output | 350mA |
| Voltage output | 2-32VDC |
| Ambient temperatures (ta) | -40°C to +70°C |
