D-Lightz Feature Light

Enquire Now

Description

This elegant spot is a true all-rounder that will lift the atmosphere of any interior.

  • Features rotation angle of 35°

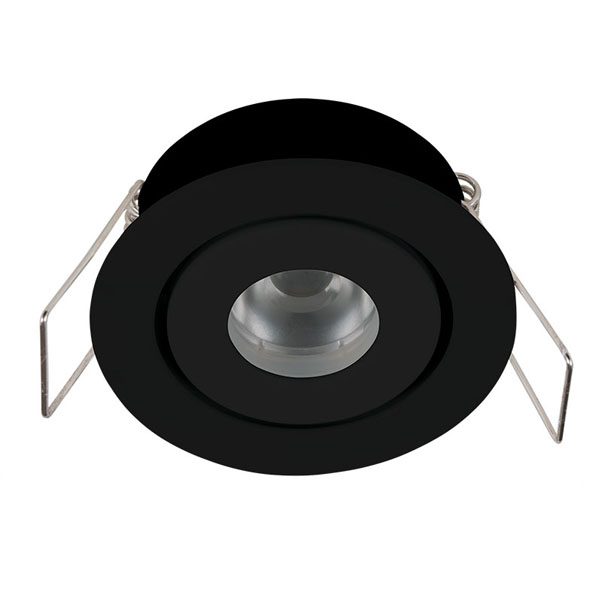

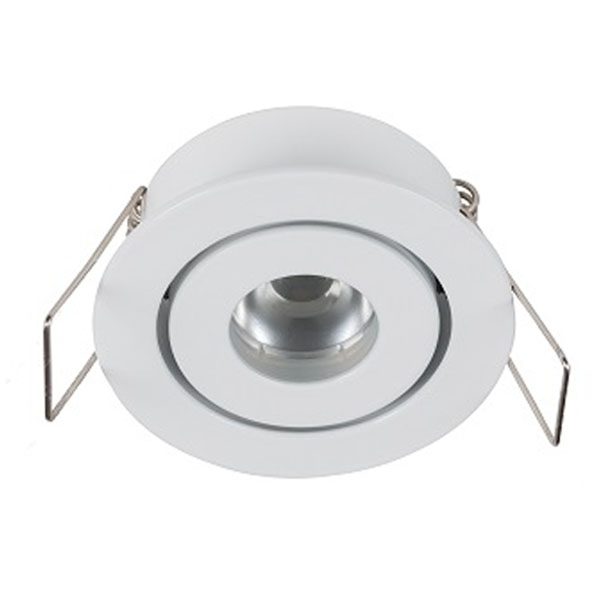

  • Available in white or black trim
  • Equivalent to 20W G4 halogen
  • Low operating temperature – install directly into timber
  • Use driver L05020 – 1-5 LED connected in series (or L05021 for dimming)

dimensions

D-Lightz-Feature-Light-Dimension

Additional information

Type

Tilt spot light – self mounting

Cut-out

Ø 100 mm – Ø 140 mm

Ø 100 mm – Ø 170 mm

Beam angle

30°

Tilt angle

35°

Colour Temperature

2700K, 3000K, 4000K

CRI

90+ CRI

Trim Colour

White, Black

Diffuser

Lens

Delivered Lumens*

175

IP Rating

IP44

Insulation Coverable Luminare

Yes, IC-F and IC-4

Dimensions

50mm x 21mm

Min Hole Depth

30mm

Mounting Material Thickness

5-20mm

Cutout

43mm

Power Supply

350-700mA – Constant Current (sold seperartly)

Dimming

L05020 driver – No
L05021 driver – Yes

Driver Covered

No

Efficacy*

79 Lm/W

PF

0.95

Expected Life

30,000hrs +

Replaces

L05420WW-W

HCB & SCB

0mm

Forward Voltage (VF)

3.2V

Note

*Specifications are given for series 3000K colour. Specifications for other colours may differ slightly.
