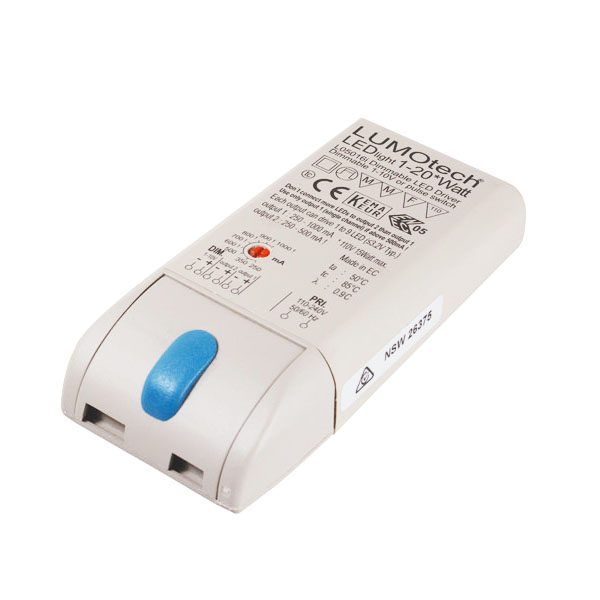

L05016i LEDlight 1-20VA 0.25-1A DIM 1-10V, pulse

This LED Driver includes the following features:

The L05016i LEDlight is a stabilized and adjustable current source supplying two output channels.
Adjustments are easily made with a build-in single potentiometer.
Channel one can drive from 250mA up to 1000mA max. Channel two can drive from 250mA to 500mA max.
The Driver is dimmable with a standard 1-10V device, a potentiometer or with a pulse switch.

Additional information

Type	Constant current
Max power output	20W
Dimmable	1-10V potentiometer 100k log b/pulse switch
Size	111 x 52 x 23.5 mm
Power Factor (λ)	0.9C
Input voltage	110-240VAC 50/60Hz
Current output	Output channel 1 : 250-1000mA stabilized adjustable current source. Output channel 2: 250-500mA stabilized adjustable current source.
Voltage output	3 – 32VDC
Ambient temperature (ta)	-20 +50º C
Max. temperature (tc)	85ºC
Approvals	CE, KEMA KEUR, ENEC-05
Warranty	5 years
